| Availability: | |
|---|---|
| Quantity: | |

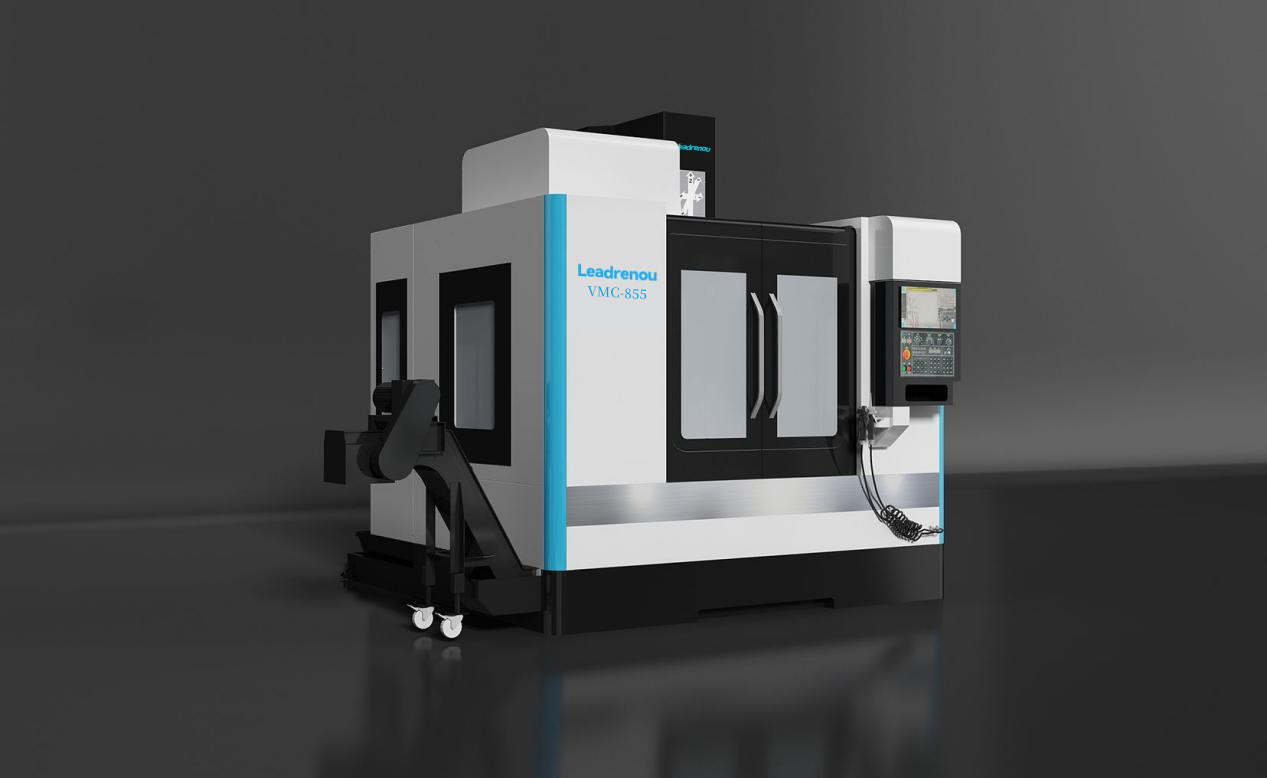

| Item | Unit | VMC-855HL | VMC-1055HL | ||
| System | CNC system | - | FANUC | ||
| Rapid speed | mm/min | 36000/36000/36000 | |||
| Cutting feed speed | mm/min | 1-10000 | |||
| Three-axis rated power | Kw | 3.0/3.0/3.0 | 3.0/3.0/3.0 | ||
| Three-axis rated torque | N.m | 20.0/20.0/20.0 | 20.0/20.0/20.0 | ||
| Workbench | T-slot size | - | 5-18-90 | ||
| Workbench size | mm | 1000×550 | 1200×550 | ||
| Workbench maximum load | Kg | 600 | 800 | ||
| Stroke | Three-axis stroke | mm | 800×550×550 | 1000×550×550 | |
| Distance from spindle end to workbench surface | mm | 120-670 | |||
| Spindle | Spindle power | Kw | 7.5-11 | ||
| Maximum spindle speed | rpm | 10000 (belt)/12000 (direct connection)/15000 (direct connection) | |||
| Spindle taper | - | BT40 | |||
| Transmission | Screw diameter/pitch | mm | Φ40D16/Φ40D16/Φ40D12 | Φ40D12/Φ40D12/Φ40D12 | |
| Linear rail brand/type/width | - | PMI roller 35mm/roller 45mm/roller 45mm | PMI roller 45mm/roller 45mm/roller 45mm | ||
| Number of guide rails/number of sliders | Pcs | 2-4/2-4/2-6 | 2-6/2-4/2-6 | ||
| Tool magazine | Tool magazine capacity | Pcs | 24 | ||
| BT/BBT rivet angle | ° | 45° | |||
| Maximum tool diameter | mm | Φ80(full magazine)/Φ150(empty adjacent tool) | |||
| Maximum tool length/weight | mm/kg | 300/8 | |||
| Tool change time | s | 1.3 | |||
| Partial configuration | Automatic chip removal | - | backwash | ||
| Automatic lubrication system | - | thin oil lubrication | |||
| Electric cabinet heat dissipation | - | heat exchanger | |||
| Accuracy | Positioning accuracy (full stroke) | mm | 0.008 | ||
| Repeat positioning accuracy (full stroke) | mm | 0.005 | |||
| Others | Air source flow/pressure | - | 150 (L/min)/air pressure (6Bar) | ||
| Total power | Kw | 20 | |||
| Machine weight | Kg | 5500 | 6000 | ||
| Machine size (length × width × height) | mm | 2600×2350×2800 | 3020×2350×2800 | ||
Standard configuration: robotic arm tool magazine, rear flushing chip removal, spindle oil cooler, water gun, air gun, spindle air curtain, spindle ring spray, centralized lubrication, air source treatment, oil-water separation, heat exchanger
Option configuration: Mitsubishi/new generation system, hollow screw, chain chip conveyor, grease lubrication, electrical cabinet air conditioning, four axis, five axis, column height increase, spindle internal cooling, tooling, fixtures
Note 1: The three-axis power and torque are based on FANUC. For detailed information on Mitsubishi, new generation and other systems, please consult the corresponding customer manager;
Note 2: Optional BT50-155 spindle;
Note 3: In case of stock shortage, HIWIN, Rexroth, THK and other equivalent specifications will be used for replacement without prior notice;
Note ④: The capacity of the knife compartment can be optionally selected as 30T;
Note ⑤: This size does not include the water tank (the width of the rear flushing water tank increases by 400mm), nor does it include the space occupied by the chain row (the length of the chain row increases by 1000mm). Either option can be chosen based on the actual configuration;
