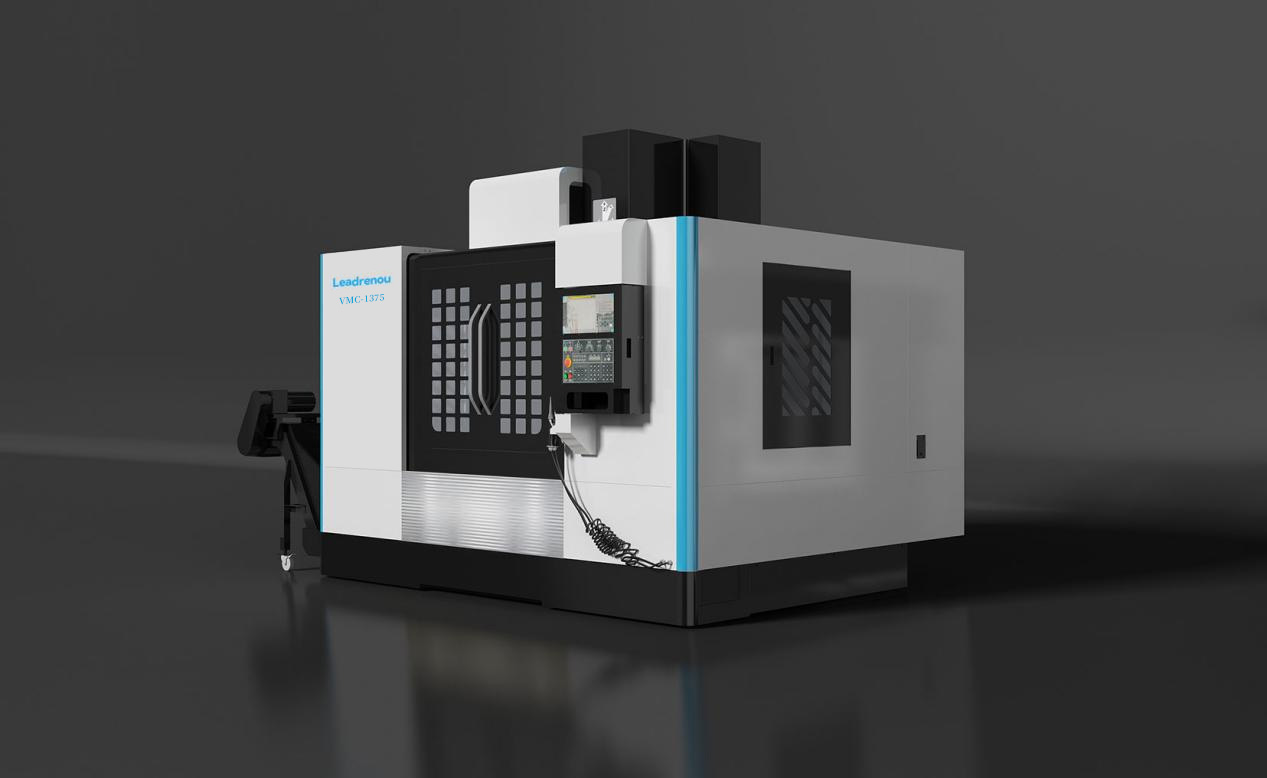

| ITEM | unit | VMC-1275 | VMC-1375 | VMC-1575 | |
| System | controller | 一 | FANUC/Mitsubishi/Siemens | FANUC/Mitsubishi/Siemens | FANUC/Mitsubishi/Siemens |
| Rapid feed rate | mm/min | 36000/36000/36000 | 36000/36000/36000 | 24000/24000/24000 | |
| Cutting feed rate | mm/min | 1-10000 | 1-10000 | 1-10000 | |
| 3axis power | kw | 3.0/3.0/3.0 | 3.0/3.0/3.0 | 3.0/3.0/3.0 | |
| 3axis torque | n.m | 20.0/20.0/27.0 | 20.0/20.0/27.0 | 20.0/20.0/27.0 | |
| Table | T-slot size | 一 | 7-18-100 | 7-18-100 | 7-18-100 |
| Table size | mm | 1300×700 | 1400×700 | 1600×700 | |
| Table load | kg | 1000 | 1000 | 1000 | |
| Travel | 3axis travel | mm | 1200×750×600 | 1300×750×600 | 1500×750×600 |
| Distance for spindle nose to table | mm | 150-750 | 150-750 | 150-750 | |
| Spindle | Spindle motor | kw | 11.0-15.0 | 11.0-15.0 | 11.0-15.0 |
| Spindle speed | rpm | 10000(Belt）/12000(Direct） | 10000(Belt）/12000(Direct） | 10000(Belt）/12000(Direct） | |
| spindle taper | 一 | BT40 | BT40 | BT40 | |
| drive | Screw diameter and pitch | mm | φ40D12/φ40D12/φ40D12 | φ40D12/φ40D12/φ40D12 | φ40D12/φ40D12/φ40D12 |
| Roller track width | 一 | 45mm/55mm/45mm | 45mm/55mm/45mm | 45mm/55mm/45mm | |
| linear guides and sliders | pcs | 2-6/2-4/2-6 | 2-6/2-4/2-6 | 2-6/2-4/2-6 | |
| magazine | Tool magazine capacity | pcs | 24 | 24 | 24 |
| Pull Stud angle | ° | 45° | 45° | 45° | |
| Max tool diameter | mm | φ80(full)/φ150(empty) | φ80(full)/φ150(empty) | φ80(full)/φ150(empty) | |
| Max tool length and weight | mm/kg | 300/8 | 300/8 | 300/8 | |
| Tool change time | s | 1.3 | 1.3 | 1.3 | |
| Other functions | Chip conveyor | 一 | Chain chip conveyor | Chain chip conveyor | Chain chip conveyor |
| Automatic lubrication | 一 | Thin oil lubrication | Thin oil lubrication | Thin oil lubrication | |
| Electrical Cabinet Cooling | 一 | heat exchanger | heat exchanger | heat exchanger | |
| Accuracy | Positioning precison | mm | 0.008 | 0.008 | 0.008 |
| Reproducibility | mm | 0.005 | 0.005 | 0.005 | |
| other | Air pressure requirements | 一 | Flow 150(L/min)/Pressure(6Bar) | Flow 150(L/min)/Pressure(6Bar) | Flow 150(L/min)/Pressure(6Bar) |
| total power | kw | 25 | 25 | 25 | |
| machine weight | kg | 7500 | 7800 | 8300 | |
| Machine size(L*W*H) | mm | 3300×2900×2900 | 3300×2900×2900 | 3300×2900×2900 | |
Standard configuration: robotic arm tool magazine, rear flushing chip removal, spindle oil cooler, water gun, air gun, spindle air curtain, spindle ring spray, centralized lubrication, air source treatment, oil-water separation, heat exchanger
Option configuration: Mitsubishi/new generation system, hollow screw, chain chip conveyor, grease lubrication, electrical cabinet air conditioning, four axis, five axis, column height increase, spindle internal cooling, tooling, fixtures
Note 1: The three-axis power and torque are based on FANUC. For detailed information on Mitsubishi, new generation and other systems, please consult the corresponding customer manager;
Note 2: Optional BT50-155 spindle;
Note 3: In case of stock shortage, HIWIN, Rexroth, THK and other equivalent specifications will be used for replacement without prior notice;
Note ④: The capacity of the knife compartment can be optionally selected as 30T;
Note ⑤: This size does not include the water tank (the width of the rear flushing water tank increases by 400mm), nor does it include the space occupied by the chain row (the length of the chain row increases by 1000mm). Either option can be chosen based on the actual configuration;
