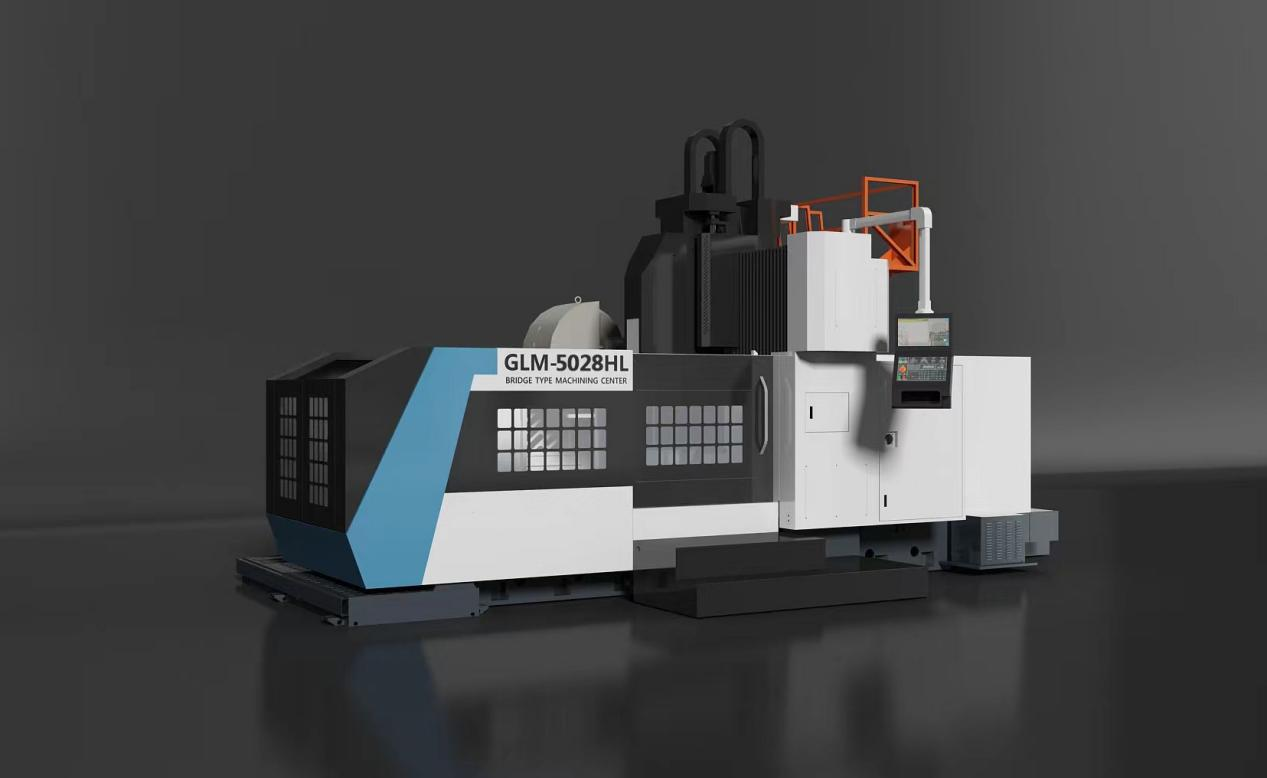

GLM-5022/GLM-5028/GLM6030

Mechanical characteristics
·The low center of gravity chassis design is as solid as a rock

·The Y-direction four guide rail design effectively resists deformation under heavy loads

·Craftsmanship in design and meticulous assembly

·High stability, rigidity, and precision perfectly combined

Availability:

Quantity:



Inquire Add to Basket

Product Description

ITEM		unit	GLM-5022	GLM-5028	GLM-6030
ITEM		unit	GLM-5022	GLM-5028	GLM-6030
System	controller	一	FANUC/Mitsubishi/Siemens	FANUC/Mitsubishi/Siemens	FANUC/Mitsubishi/Siemens
	Rapid feed rate	mm/min	12000/12000/12000	12000/12000/12000	12000/12000/12000
	Cutting feed rate	mm/min	1-8000	1-8000	1-8000
	3axis power	kw	6.0/7.0/7.0	6.0/7.0/7.0	6.0/7.0/7.0
	3axis torque	n.m	38.0/30.0/30.0	38.0/30.0/30.0	38.0/30.0/30.0
Table	T-slot size	一	9×28×220	9×28×220	9×28×220
	Table size	mm	5000×1800	5000×2100	6000×2500
	Door width	mm	2200	2900	3000
	Table load	kg	20000	22000	28000
Travel	3axis travel	mm	5000x2200x1000	5000x2900x1000	6000×3000×1000
Travel	Distance for spindle nose to table	mm	200-1200	200-1200	200-1200
Spindle	Spindle motor	kw	22.0-26.0	22.0-26.0	22.0-26.0
	Spindle speed	rpm	6000(Belt）	6000(Belt）	6000(Belt）
	spindle taper	一	BT50	BT50	BT50
drive	Screw diameter and pitch	mm	φ80D16/φ63D12/φ50D10	φ80D16/φ63D12/φ50D10	φ80D16/φ63D12/φ50D10
	Roller track width	一	55mm/55mm/hard rail	55mm/55mm/hard rail	55mm/55mm/hard rail
	linear guides and sliders	pcs	2-14/2-6/hard rail	2-20/2-6/hard rail	2-20/2-6/hard rail
magazine	Tool magazine capacity	pcs	24	24	24
	Pull Stud angle	°	45°	45°	45°
	Max tool diameter	mm	φ110(full)/φ210(empty)	φ110(full)/φ210(empty)	φ110(full)/φ210(empty)
	Max tool length and weight	mm/kg	350/15	350/15	350/15
	Tool change time	s	2.2	2.2	2.2
Other functions	Chip conveyor	一	2 Screw + 1 Chain chip conveyor	2 Screw + 1 Chain chip conveyor	2 Screw + 1 Chain chip conveyor
	Automatic lubrication	一	Thin oil lubrication	Thin oil lubrication	Thin oil lubrication
	Electrical Cabinet Cooling	一	heat exchanger	heat exchanger	heat exchanger
Accuracy	Positioning precison	mm	0.01/0.01/0.012	0.012/0.012/0.014	0.012/0.012/0.014
Accuracy	Reproducibility	mm	0.008/0.008/0.01	0.01/0.01/0.012	0.01/0.01/0.012
other	Air pressure requirements	一	Flow 150(L/min)/Pressure(6Bar)	Flow 150(L/min)/Pressure(6Bar)	Flow 150(L/min)/Pressure(6Bar)
	total power	kw	65	65	65
	machine weight	kg	49000	54000	73000
	Machine size(LWH)	mm	15000×4400×5500	15000×5200×5500	16500×5900×5500

Standard configuration: robotic arm tool magazine, rear flushing chip removal, spindle oil cooler, water gun, air gun, spindle air curtain, spindle ring spray, centralized lubrication, air source treatment, oil-water separation, heat exchanger

Option configuration: Mitsubishi/new generation system, hollow screw, chain chip conveyor, electric cabinet air conditioning, four axis, five axis, column height increase, spindle internal cooling, tooling, fixture

Note 1: The three-axis power and torque are based on FANUC. For detailed information on Mitsubishi, new generation and other systems, please consult the corresponding customer manager;

Note 2: Some models are equipped with French Morelli gearboxes;

Note 3: In case of stock shortage, HIWIN, Rexroth, THK and other equivalent specifications will be used for replacement without prior notice;

Note ④: The capacity of the knife compartment can be optionally selected as 30T;

GLM-5022/GLM-5028/GLM6030
