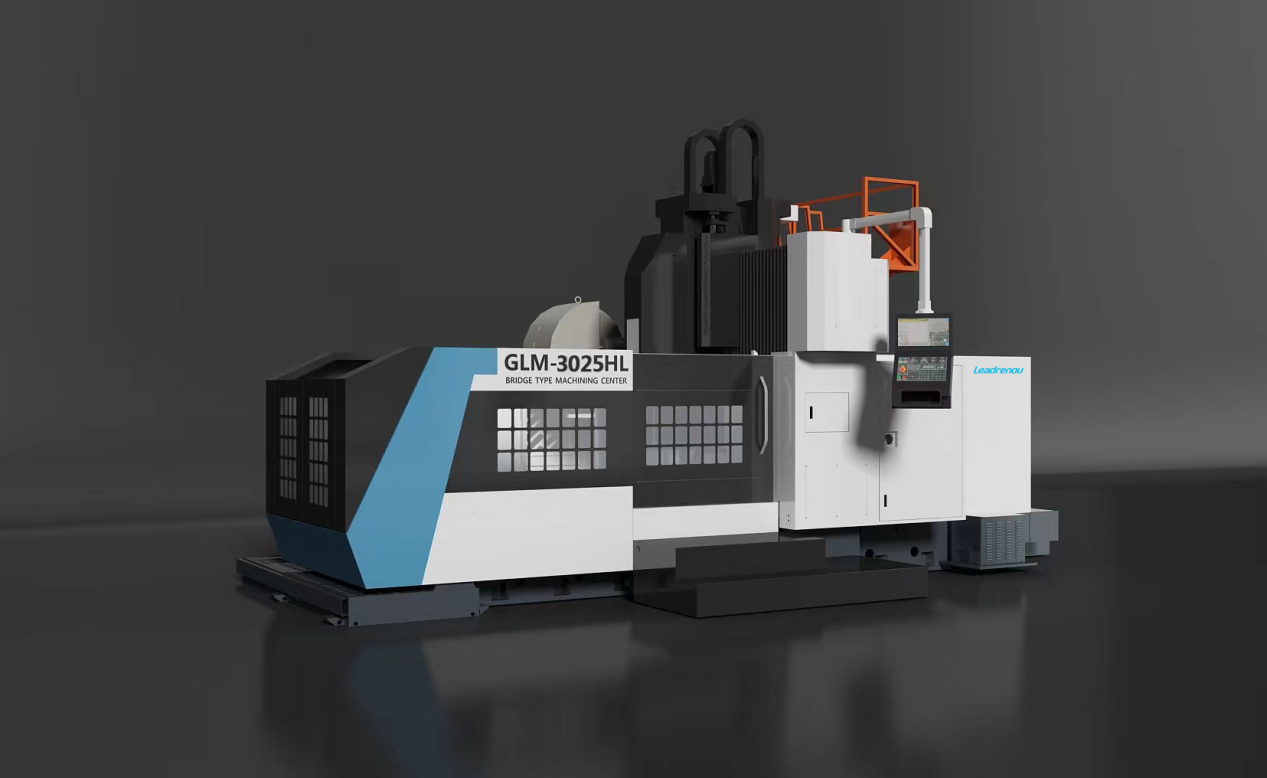

GLM-3016/GLM-3025/GLM4025

Mechanical characteristics
·The low center of gravity chassis design is as solid as a rock

·The Y-direction four guide rail design effectively resists deformation under heavy loads

·Craftsmanship in design and meticulous assembly

·High stability, rigidity, and precision perfectly combined

Availability:

Quantity:



Inquire Add to Basket

Product Description

ITEM		unit	GLM-3016	GLM-3025	GLM-4025
ITEM		unit	GLM-3016	GLM-3025	GLM-4025
System	controller	一	FANUC/Mitsubishi/Siemens	FANUC/Mitsubishi/Siemens	FANUC/Mitsubishi/Siemens
	Rapid feed rate	mm/min	12000/12000/12000	12000/12000/12000	12000/12000/12000
	Cutting feed rate	mm/min	1-10000	1-10000	1-10000
	3axis power	kw	3.0/3.0/3.0	3.0/3.0/3.0	6.0/7.0/7.0
	3axis torque	n.m	36.0/36.0/36.0	38.0/30.0/30.0	38.0/30.0/30.0
Table	T-slot size	一	7-28-180	11-28-180	13-28-180
	Table size	mm	3100×1400	3100×2000	4000×2000
	Door width	mm	1600	2500	2500
	Table load	kg	8000	10000	13000
Travel	3axis travel	mm	3200×1600×700	3200×2500×1000	4200×2500×1000
Travel	Distance for spindle nose to table	mm	150-850	220-1220	220-1220
Spindle	Spindle motor	kw	15.0-18.5（wide-range）	18.5-22.0	22.0-26.0
	Spindle speed	rpm	6000(Belt）	6000(Belt）	6000(Belt）
	spindle taper	一	BT50	BT50	BT50
drive	Screw diameter and pitch	mm	φ63D10/φ50D10/φ50D10	φ63D10/φ63D10/φ50D10	φ80D16/φ63D16/φ50D10
	Roller track width	一	55mm/55mm/45mm	55mm/45mm/hard rail	55mm/45mm/hard rail
	linear guides and sliders	pcs	2-10/2-6/2-6	2-10/2-6/hard rail	2-12/2-6/hard rail
magazine	Tool magazine capacity	pcs	24	24	24
	Pull Stud angle	°	45°	45°	45°
	Max tool diameter	mm	φ110(full)/φ210(empty)	φ110(full)/φ210(empty)	φ110(full)/φ210(empty)
	Max tool length and weight	mm/kg	350/15	350/15	350/15
	Tool change time	s	2.2	2.2	2.2
Other functions	Chip conveyor	一	2 Screw + 1 Chain chip conveyor	2 Screw + 1 Chain chip conveyor	2 Screw + 1 Chain chip conveyor
	Automatic lubrication	一	Thin oil lubrication	Thin oil lubrication	Thin oil lubrication
	Electrical Cabinet Cooling	一	heat exchanger	heat exchanger	heat exchanger
Accuracy	Positioning precison	mm	0.008/0.008/0.012	0.008/0.008/0.012	0.008/0.008/0.012
Accuracy	Reproducibility	mm	0.006/0.006/0.008	0.006/0.006/0.008	0.006/0.006/0.008
other	Air pressure requirements	一	Flow 150(L/min)/Pressure(6Bar)	Flow 150(L/min)/Pressure(6Bar)	Flow 150(L/min)/Pressure(6Bar)
	total power	kw	40	50	50
	machine weight	kg	26000	46000	58000
	Machine size(LWH)	mm	13500×4500×5000	13500×5500×5200	15000×5500×5200

Standard configuration: robotic arm tool magazine, rear flushing chip removal, spindle oil cooler, water gun, air gun, spindle air curtain, spindle ring spray, centralized lubrication, air source treatment, oil-water separation, heat exchanger

Option configuration: Mitsubishi/new generation system, hollow screw, chain chip conveyor, electric cabinet air conditioning, four axis, five axis, column height increase, spindle internal cooling, tooling, fixture

Note 1: The three-axis power and torque are based on FANUC. For detailed information on Mitsubishi, new generation and other systems, please consult the corresponding customer manager;

Note 2: Some models are equipped with French Morelli gearboxes;

Note 3: In case of stock shortage, HIWIN, Rexroth, THK and other equivalent specifications will be used for replacement without prior notice;

Note ④: The capacity of the knife compartment can be optionally selected as 30T;
