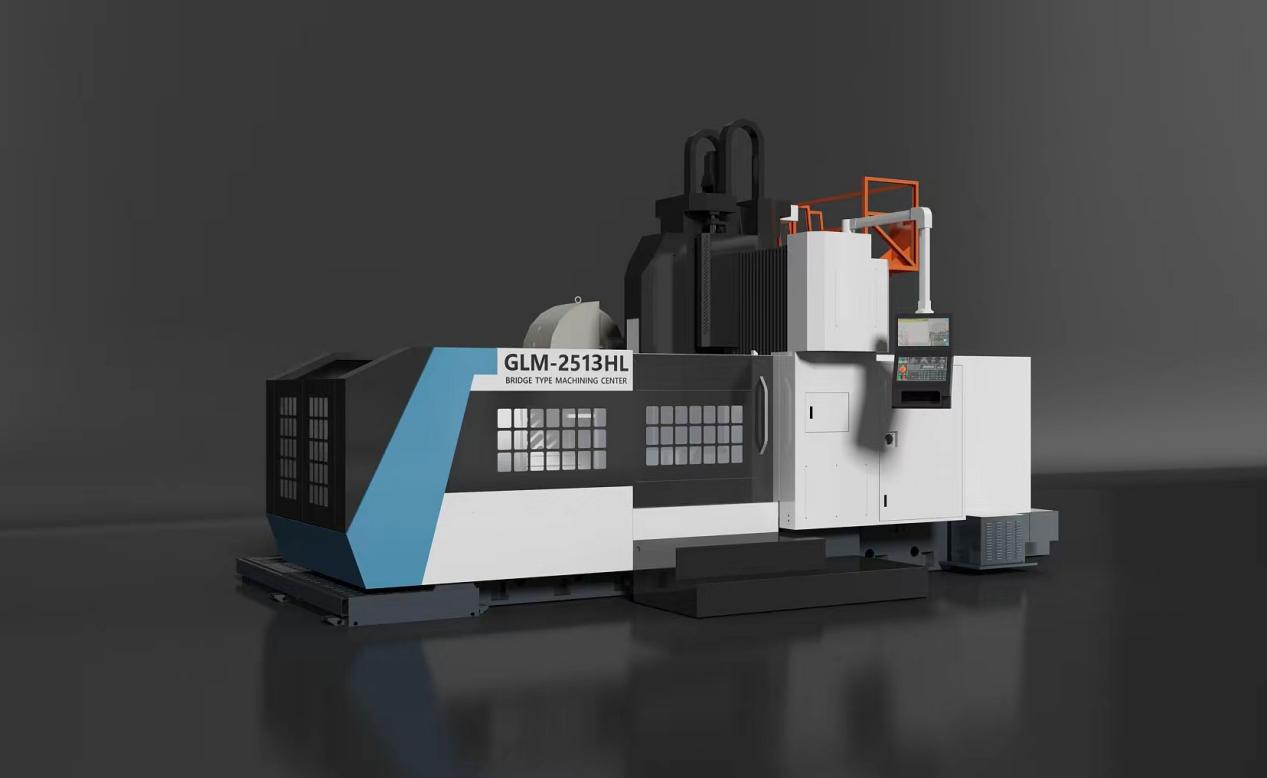

| Availability: | |
|---|---|
| Quantity: | |
| ITEM | unit | GLM-1311 | GLM-2013 | GLM-2513 | |
| System | controller | 一 | FANUC/Mitsubishi/Siemens | FANUC/Mitsubishi/Siemens | FANUC/Mitsubishi/Siemens |
| Rapid feed rate | mm/min | 20000/20000/20000 | 20000/20000/20000 | 20000/20000/20000 | |
| Cutting feed rate | mm/min | 1-10000 | 1-10000 | 1-10000 | |
| 3axis power | kw | 3.0/3.0/3.0 | 3.0/3.0/3.0 | 3.0/3.0/3.0 | |
| 3axis torque | n.m | 36.0/36.0/36.0 | 36.0/36.0/36.0 | 36.0/36.0/36.0 | |
| Table | T-slot size | 一 | 7-18-120 | 7-18-150 | 7-22-150 |
| Table size | mm | 1400×1000 | 2100×1200 | 2100×1200 | |
| Door width | mm | 1100 | 1300 | 1300 | |
| Table load | kg | 2500 | 4000 | 8000 | |
| Travel | 3axis travel | mm | 1350×1100×600 | 2000×1300×600 | 2500×1300×880 |
| Distance for spindle nose to table | mm | 120-720 | 200-800 | 270-1150 | |
| Spindle | Spindle motor | kw | 15.0-18.5（wide-range） | 15.0-18.5（wide-range） | 15.0-18.5（wide-range） |
| Spindle speed | rpm | 6000(Belt） | 6000(Belt） | 6000(Belt） | |
| spindle taper | 一 | BT50 | BT50 | BT50 | |
| drive | Screw diameter and pitch | mm | φ50D10/φ40D10/φ40D10 | φ50D12/φ50D12/φ50D10 | φ63D12/φ50D10/φ50D10 |
| Roller track width | 一 | 45mm/45mm/55mm | 45mm/45mm/55mm | 45mm/45mm/55mm | |
| linear guides and sliders | pcs | 2-6/2-4/2-6 | 2-6/2-4/2-6 | 2-6/2-4/2-6 | |
| magazine | Tool magazine capacity | pcs | 24 | 24 | 24 |
| Pull Stud angle | ° | 45° | 45° | 45° | |
| Max tool diameter | mm | φ110(full)/φ210(empty) | φ110(full)/φ210(empty) | φ110(full)/φ210(empty) | |
| Max tool length and weight | mm/kg | 350/15 | 350/15 | 350/15 | |
| Tool change time | s | 2.2 | 2.2 | 2.2 | |
| Other functions | Chip conveyor | 一 | 2 Screw + 1 Chain chip conveyor | 2 Screw + 1 Chain chip conveyor | 2 Screw + 1 Chain chip conveyor |
| Automatic lubrication | 一 | Thin oil lubrication | Thin oil lubrication | Thin oil lubrication | |
| Electrical Cabinet Cooling | 一 | heat exchanger | heat exchanger | heat exchanger | |
| Accuracy | Positioning precison | mm | 0.006/0.006/0.006 | 0.006/0.006/0.006 | 0.006/0.006/0.006 |
| Reproducibility | mm | 0.004/0.004/0.005 | 0.004/0.004/0.005 | 0.004/0.004/0.005 | |
| other | Air pressure requirements | 一 | Flow 150(L/min)/Pressure(6Bar) | Flow 150(L/min)/Pressure(6Bar) | Flow 150(L/min)/Pressure(6Bar) |
| total power | kw | 30 | 30 | 30 | |
| machine weight | kg | 13000 | 19000 | 26500 | |
| Machine size(L*W*H) | mm | 6500×2800×3200 | 7500×3200×3300 | 8000×3200×3900 | |
Standard configuration: robotic arm tool magazine, rear flushing chip removal, spindle oil cooler, water gun, air gun, spindle air curtain, spindle ring spray, centralized lubrication, air source treatment, oil-water separation, heat exchanger
Option configuration: Mitsubishi/new generation system, hollow screw, chain chip conveyor, electric cabinet air conditioning, four axis, five axis, column height increase, spindle internal cooling, tooling, fixture
Note 1: The three-axis power and torque are based on FANUC. For detailed information on Mitsubishi, new generation and other systems, please consult the corresponding customer manager;
Note 2: Some models are equipped with French Morelli gearboxes;
Note 3: In case of stock shortage, HIWIN, Rexroth, THK and other equivalent specifications will be used for replacement without prior notice;
Note ④: The capacity of the knife compartment can be optionally selected as 30T;
